Red TJ Build

#42
Gotcha, I was doing some research on that last night also. It looks way better like that. So you just shortened the rear links?
Yeah, I actually used my old front upper links as the new rear lower links. I'll eventually sleeve them if I like this wheelbase, they are currently just all thread and revo rod ends.

#43

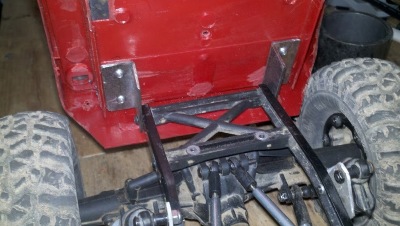

So, I mounted my rear shocks....not sure if its how I'll leave it but it works well. I also decided to see what the rear corner guards would look like, so I made some templates out of cardboard.

New rear shock mounts, I cut up some old aluminum skidplate from my honcho.

Another shot of the trimmed front servo mount/bumper.

With the basic shape cut out.

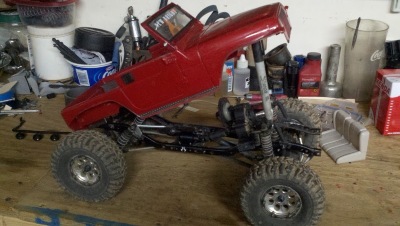

testing flex


Next step is mounting the body and starting the cage I guess.

#44
Trying to figure out some small hardware to use for my corner guards that wont look huge. Any suggestions? 3mm hardware is huge, but nobody local carries anything smaller that I have found. I know mcmaster, or maybe fastenal?


WolfGT

LIFETIME
SUPPORTER
#48
Go pick up one of the glasses repair kits. Those little bolts would be about the right size to look scale and they have nuts and all.

#49
I need some stuff from mcmaster... let me know What you want an I'll toss it on.

Sent from my DROID RAZR using Tapatalk 2
(1) 92949A078 18-8 SS Button Head Socket Cap Screw 2-56 Thread, 5/16" Length, packs of 100
(1) 92949A074 18-8 SS Button Head Socket Cap Screw 2-56 Thread, 1/8" Length, packs of 100
(1) 90480A003 Zinc-Plated Steel Machine Screw Hex Nut 2-56 Thread Size, 3/16" Width, 1/16" Height, packs of 100

I need those, and also I need an assortment of 3mm hardware and nuts, but I think you said you had a pile of them.

Last edited:
#52
pretty sure my mom is at her vista office today till five, go swing by there and ask her if you can snag a few glasses screws. i'm sure she has something like that since she is an optometrist. I can give her a call if you want.

#54
pretty sure my mom is at her vista office today till five, go swing by there and ask her if you can snag a few glasses screws. i'm sure she has something like that since she is an optometrist. I can give her a call if you want.
I didnt drive today, and I would rather get button head hardware. Thanks though.


WolfGT

LIFETIME
SUPPORTER
#55
Drop some solder in the head and sand it flat. Lol, if you were a true scaled, you would make your own out of raw metal and a scale forge.
Sent from my Lumia 920 using Board Express Pro

#58
(1) 92949A078 18-8 SS Button Head Socket Cap Screw 2-56 Thread, 5/16" Length, packs of 100
(1) 92949A074 18-8 SS Button Head Socket Cap Screw 2-56 Thread, 1/8" Length, packs of 100
(1) 90480A003 Zinc-Plated Steel Machine Screw Hex Nut 2-56 Thread Size, 3/16" Width, 1/16" Height, packs of 100

I need those, and also I need an assortment of 3mm hardware and nuts, but I think you said you had a pile of them.

Updated my list to include hardware for some new beadlocks rings:grinpimp:

#59

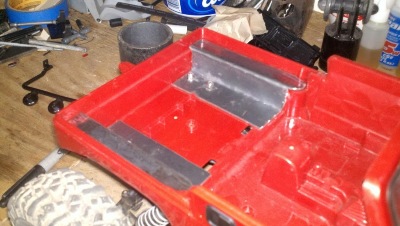

got the body mounted last night and finished it up today. I made it hinge at the back at the frame, and then it has Velcro on the servo to hold the front down. The rear is a tight fit and keeps it mostly situated, the velcro is just for when it rolls over.



This is what I'm going to weld the cage to in the rear.

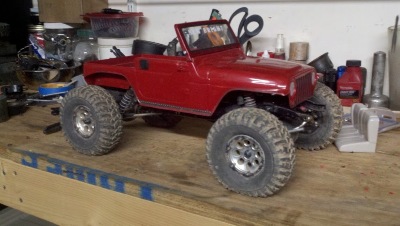

Ride height with body mounted but no cage or rockers.

#60

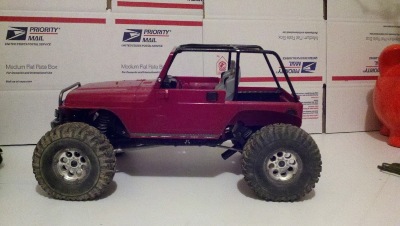

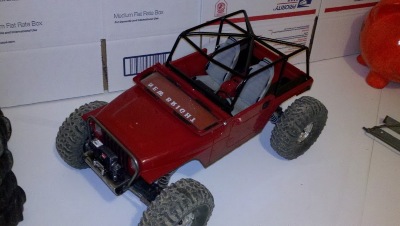

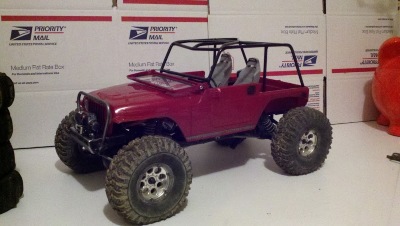

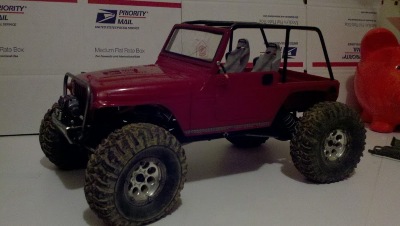

I have had some sinus junk the past few days, so I stayed out of work today. I got a little stir crazy after lunch today and decided to work on the TJ. I really like working with this solid rod. I'm not sold on the grill hoop design thats why its not painted yet, but I like the cage. I went ahead and painted it today. Its not bolted in in the pics and is about 1/4" higher than it is when its bolted in.
